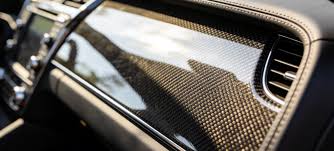

Why Carbon Fiber Is the Most Searched Interior Wrap Style in 2026
The popularity of carbon fiber as a material in motorsport and aerospace has created an enduring visual association with performance, precision engineering, and lightweight construction. Inside a vehicle, that association is even more concentrated — you see the dash surface constantly, from every angle, under shifting lighting conditions throughout the day. A forged fiber or 3D woven pattern engages with light differently at each moment, producing a surface that rewards attention in a way flat plastic never can.
Beyond aesthetics, interior carbon fiber wrap serves practical purposes. It covers UV-faded trim panels, hides hairline cracks in aging plastics, protects against ongoing abrasion from clothing and hands, and preserves the underlying surface for future removal without damage. For anyone considering how color carbon fiber wrap options translate from exterior panels to interior applications, the same forged fiber logic applies: the random weave pattern reads as more authentic than grid-pattern alternatives and holds its visual complexity at close inspection distances where interior surfaces are typically viewed.
Choosing the Right Carbon Fiber Vinyl Film for Dashboard Application
Not all carbon fiber vinyl performs the same way on interior trim. Dashboard panels differ from exterior panels in three critical ways: they have more complex compound curves, they experience less UV exposure but more heat buildup, and they are viewed at much closer range. Here is how to match film type to those demands.
3D Matte Black Forging Fiber — The Interior Benchmark
The Carbon Fiber Matte Black Forging Fiber wrap is the most consistent performer for dashboard applications. The matte finish eliminates surface glare that would otherwise create distracting reflections in the windshield, particularly during daytime driving. The forged fiber pattern — with its random, non-repeating fiber arrangement — reads as far more realistic at the close viewing distances typical of an interior than any uniform grid pattern. The deep texture also masks fingerprints and minor contact marks better than gloss surfaces, which is critical for a high-touch area like the center console and dashboard edges.
3D Gloss Black Forged Fiber — Bold, High-Contrast Statement
The Carbon Fiber Gloss Black Forged version creates an intense, lacquered appearance that pairs well with vehicles where the ambient interior lighting is warm and diffuse rather than direct. It is the better choice for show vehicles where the dash will be photographed or examined under controlled lighting. In daily driving, a gloss interior wrap requires more frequent cleaning and will show fingerprints prominently — something to weigh against the more dramatic visual impact.
4D Carbon Fiber Gloss Black — Maximum Depth for Feature Panels
The 4D Carbon Fiber Gloss Black wrap adds another dimension of visual depth to the standard gloss carbon pattern, creating a layered appearance where the fiber weave appears to have genuine physical depth behind the surface. For smaller, feature trim panels — the instrument cluster surround, the shifter trim, the steering column fascia — where the film will be examined at close range, the 4D variant delivers the most convincing real-carbon appearance of any vinyl option currently available.
Red Carbon Fiber Variants — Interior Color Accents
Both the Matte Red Forging Fiber and Gloss Red Forged carbon wraps work as intentional interior color accents rather than full-dash applications. Red carbon on a door panel insert, a shifter surround, or a steering wheel center trim creates immediate contrast within a predominantly black interior — the same color language used by performance brands as a cabin signature. The matte version pairs with a matte exterior wrap for total interior-to-exterior design coherence.
Tools Required for Carbon Fiber Dashboard Wrap Installation
Having the right tools before starting makes the difference between a professional-looking result and one that requires a redo. The Sailifilm wrapping tools collection covers the core equipment. Here is the complete list:
-
Heat gun: Essential for activating the adhesive and softening the vinyl enough to conform to compound curves without stress wrinkles. A dual-temperature gun with a low setting (around 120–150°F surface temperature) prevents film damage on interior plastics.
-
Felt-edge squeegee: Used to press the film progressively from the center outward, eliminating air pockets without scratching the vinyl surface. A hard card squeegee is useful for flat sections; the felt edge is critical when you transition to textured carbon surfaces.
-
Precision knife or snap-blade cutter: For trimming excess film around edges, air vents, button cutouts, and panel seams. A fresh blade on every application session prevents tearing.
-
Isopropyl alcohol (70–90%) and lint-free cloths: For surface preparation. All contamination, including oils from handling, must be completely removed before film application or adhesion will fail at the edges.
-
Panel removal tools: Plastic pry tools for removing dashboard trim panels without damaging clips or the surrounding plastic. Metal pry tools scratch and chip.
-
Tape measure and cutting mat: Pre-cutting the vinyl to approximate size with adequate margin (2–3 inches on all sides) before application reduces handling stress on the film.
-
Microfiber cloth: For the final wipe-down of the wrapped surface after installation.
Step-by-Step Carbon Fiber Dashboard Wrap Installation
Step 1: Remove and Clean the Panel
Before any film touches a surface, the panel needs to be off the vehicle wherever possible. Dashboard trim panels, center console surrounds, and instrument cluster fascias almost always use plastic clip systems that release with the correct panel tool. Working off the vehicle gives you access to all edges and prevents the need to work around steering columns, air vents, and display screens. Clean the panel surface thoroughly with isopropyl alcohol and a lint-free cloth, working in overlapping sections. Allow the surface to fully dry — typically 2–3 minutes at room temperature — before proceeding. Any residual oil or cleaning product residue between the panel surface and the vinyl adhesive will create lifting and edge failure within weeks.
Step 2: Measure and Pre-Cut the Vinyl
Lay the cleaned panel face-down on a cutting mat and trace its perimeter, adding 2.5 to 3 inches of margin on every side. This margin gives you material to grip and stretch during application without the film slipping out from under your hands. The 5ft x 3.28ft roll size from Sailifilm covers most individual dash trim panels; for a full dashboard surface spanning the width of the cabin, a 5ft x 10ft roll provides adequate coverage with enough left for error. Order a sample kit first if you want to verify the finish in your cabin's lighting conditions before cutting from a full roll.
Step 3: Apply a Tack Strip and Position the Film
Peel back approximately three inches of backing from one edge of your pre-cut film section. Fold the backing under so the exposed adhesive acts as a hinge. Position this tack edge along one end of the panel — typically the top or left edge — and press it lightly to hold position without committing to full adhesion. This hinge method allows you to check alignment and adjust before the full film is laid down.
Step 4: Progressive Reveal and Squeegee Application
With the tack strip holding position, gradually pull the backing paper out from under the film with one hand while pressing the exposed adhesive section down with the felt squeegee using the other. Work from the tacked edge outward in overlapping parallel strokes, keeping the squeegee at a low angle (approximately 30 degrees) to the surface. The air-release channel technology built into Sailifilm's carbon fiber wrap adhesive layer evacuates trapped air as you apply pressure, so you will find that bubbles that appear ahead of the squeegee clear themselves as you work through the section. Do not chase bubbles aggressively — work methodically and let the channels do their job.
Step 5: Managing Compound Curves and Complex Edges
Dashboard panels present more complex geometry than flat exterior panels. Where the surface curves in two directions simultaneously — a compound curve — the vinyl must be stretched rather than simply pressed. Apply heat from the gun to the film surface (not the panel) for 3–5 seconds before stretching. The heat temporarily increases the film's conformability window. Work in small sections: heat, stretch gently in the direction of tension, squeegee flat, repeat. Avoid overheating — if the forged fiber texture begins to look distorted or the surface feels tacky under the squeegee, reduce heat and allow the film to cool for 30 seconds before continuing.
Step 6: Trim Around Openings and Edges
With the film fully applied to the panel surface, use a fresh snap-blade to trim the excess from all edges. For straight panel edges, hold the blade at a slight undercut angle so the film edge folds slightly under the panel edge rather than terminating exactly at it — this prevents the edge from lifting with temperature cycling. For air vent cutouts, button holes, and clip ports, make a relief cut first (a small straight cut toward the opening center), then work around the perimeter of each opening in short overlapping cuts, pressing the film firmly into the edge recess as you go.
Step 7: Post-Heating and Final Adhesion
Once all edges are trimmed and the panel looks clean, perform a final post-heat pass over the entire surface. Hold the heat gun 6–8 inches from the film and move continuously — this activates the adhesive fully and locks the vinyl in its stretched configuration around any curves. Without this step, film on compound curves can develop tension release wrinkles within 24–48 hours as the material attempts to return to its flat state. After post-heating, press all edges firmly with the squeegee and allow the panel to cool at room temperature for at least 30 minutes before reinstalling.
Step 8: Reinstall and Inspect
Reinstall the wrapped panel using the vehicle's OEM clip system — no additional fasteners or adhesives should be necessary. Once installed, inspect the edges under a light source at a low angle. Any lifted sections will catch the light and create a visible shadow. Small edge lifts can be reseated immediately with a burst of heat and firm squeegee pressure. For ongoing care, refer to the Sailifilm car film maintenance guide — interior carbon fiber wrap is cleaned with a damp microfiber cloth and mild soap only; no wax, polish, or abrasive cleaner should contact the wrapped surface.
Common Carbon Fiber Dashboard Wrap Mistakes and How to Avoid Them
-
Wrapping over dirty surfaces: The single most common cause of early adhesion failure. Even a surface that looks clean to the eye will have invisible oil residue from handling. Always clean with IPA immediately before application, not hours before.
-
Stretching cold film: Carbon fiber vinyl has less conformability at ambient temperature than when warmed. Attempting to stretch without heat creates white stress marks in the film and potential tearing at edges. Always heat before stretching on curved sections.
-
Over-stretching the forged fiber pattern: Excessive stretching distorts the random fiber texture and makes it look printed rather than textured. Use only enough stretch to conform to the curve without visible pattern elongation — check frequently during application.
-
Skipping post-heat: Post-heating is not optional on any panel with compound curves. Film that has not been post-heated will creep back toward its original flat state within days, lifting from edges and corners.
-
Cutting on the panel: Trimming film with pressure directly on a plastic panel surface risks scoring the plastic, which makes future removal leave deeper adhesive residue. Cut just above the panel surface using the edge as a guide only.
Combining Carbon Fiber Dash Wrap with Your Full Build
A carbon fiber dashboard is most powerful when it speaks the same design language as the vehicle's exterior. Pairing a matte black forging fiber interior wrap with a full ultra matte series exterior wrap creates total interior-exterior design coherence — the matte surface vocabulary carries across every viewing angle. For builds centered on a metallic vinyl wrap exterior, gloss black carbon fiber interior accents pick up on the reflective quality of the metallic film and echo it inside the cabin.
If the exterior features a dual color dream vinyl wrap or rainbow laser vinyl wrap, the interior becomes a counterpoint rather than a match — keeping the cabin in matte black carbon fiber grounds the build and prevents visual overload. For builds where exterior protection matters as much as style, the TPU paint protection wrap can be paired with colored PPF on the exterior while the interior showcases the carbon wrap aesthetic. Browse the full car vinyl wrap collection to plan the complete design system.
Frequently Asked Questions About Carbon Fiber Dashboard Wrapping
Do I need to remove dashboard panels to wrap them?
Removing panels produces consistently better results, particularly at edges, corners, and around air vent openings. Working on-car is possible for flat, accessible sections but makes edge trimming and compound-curve management significantly harder. The DIY car wrap installation guide covers panel removal basics for common vehicle types.
Will carbon fiber wrap damage my dashboard?
The adhesive system in Sailifilm's carbon fiber vinyl is engineered for clean removal from both painted and plastic interior surfaces. Standard removal involves peeling slowly at a low angle with gentle heat application. No chemical strippers or aggressive mechanical removal should be necessary, and no paint or plastic surface damage is expected under normal removal conditions.
How much film do I need for a full dashboard?
A full dashboard surface on a mid-size sedan typically requires between 10 and 20 square feet of film, depending on the panel complexity and how many sub-panels are included. A single 5ft x 10ft roll covers most full dash applications with margin for error. For complex dashboards with multiple integrated trim zones, a 5ft x 16ft roll provides additional coverage. Ordering a sample kit before committing to a full roll is always a practical first step.
Can I wrap the steering wheel in the same carbon fiber film?
Steering wheel trim, column stalks, and button surrounds accept the same carbon fiber vinyl used on dash panels. The key consideration for any round or heavily curved surface is heat management — more heat and smaller working sections than flat trim panels. The 3D matte black forging fiber variant is particularly effective on steering wheel centers and trim rings, where the texture reads as premium at the close focal distance typical of driver interaction. Future content covering carbon fiber color options for every panel type will include steering wheel-specific application guidance.
Final Thoughts
A carbon fiber dashboard wrap is one of the most impactful interior upgrades available without disassembling or replacing any OEM components. The transformation is immediate, fully reversible, and when done with a film that carries genuine 3D texture and a realistic forged fiber pattern, it produces results that are indistinguishable from far more expensive custom interior work at normal viewing distances. The process rewards preparation over speed — clean surfaces, adequate heat, systematic progressive application, and post-heat finishing are what separate a professional-looking result from a failed attempt.
Browse the Sailifilm 3D carbon fiber wrap collection to select your film, order a sample kit to test in your cabin's lighting conditions, and pick up the wrapping tools needed to complete the installation in a single session. Check the best sellers for what other builders are currently choosing for interior applications.
